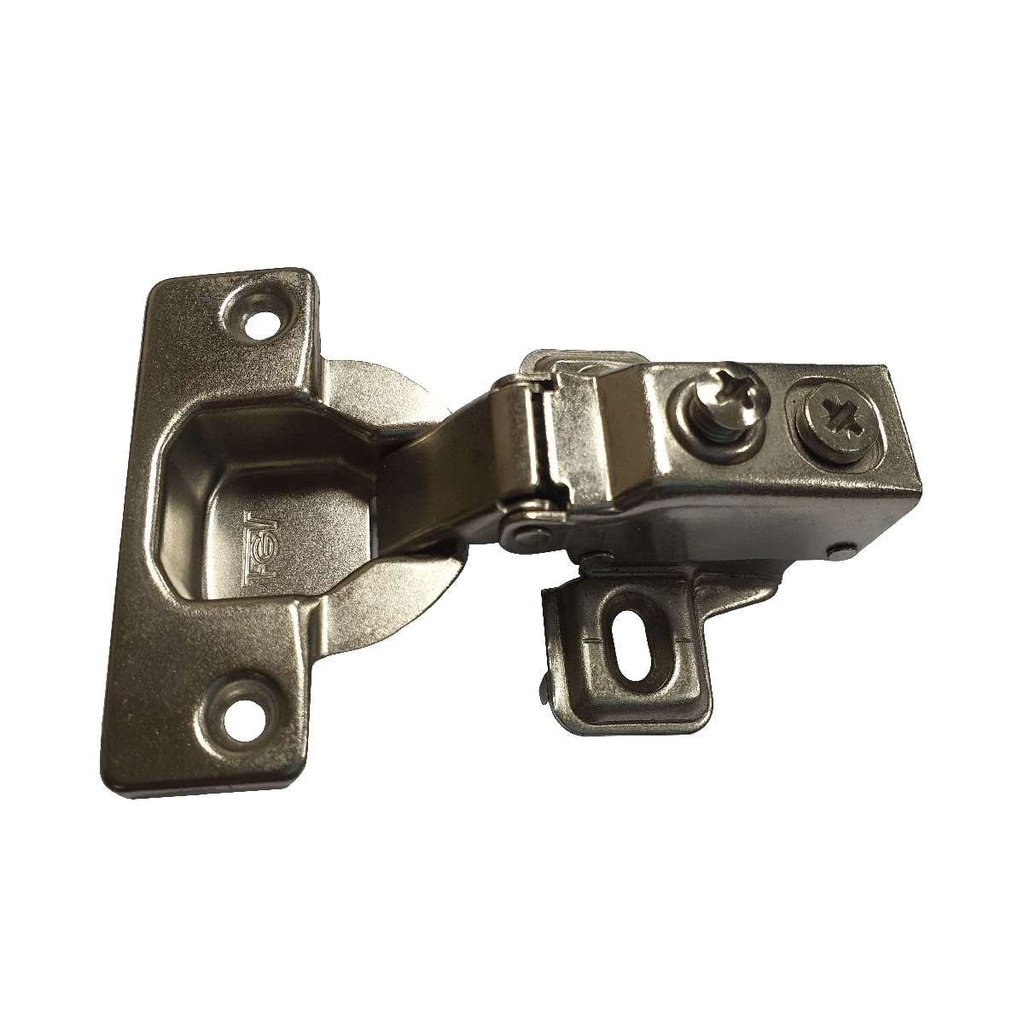

Short Arm Hinge Soft-Closing
■ Depth of the metal cup 12.3mm
■ Cup diameter 35mm
■ Cup Hole Distance 48
■ Opening 103° with (K) max 4mm and (T) max 18mm
■ Possibility of door drilling (K) from 3 to 7 mm
■ Thickness of the door (T) from 16 to 26 mm
■ SlowMotion solution with linear damper
FGVITALY
A long history of performance From the beginning, FGV became the trademark of Formenti & Giovenzana Spa for good products at the right price. Constantly re-searching new opportunities to offer clever solutions, the Company completed its range step by step to achieve a portfolio covering to-day hinges, slides, drawer systems, wall hanging brackets , wire-work and a very large array of special solutions all destined to make good furniture affordable and add benefits for the end-consumer. Over the years, FGV has consolidated their image and became synonymous of cost-innovation. In parallel to thorough an-alyse of mainstream products and cost-cutting exercises to market clever solutions at the right price, FGV started to innovate gradual-ly as the host of patents held by the Company clearly demonstrates.
SKU :
51MSF505090X050Category :
Hinges
100% original guarantee
Return within 30days
Free delivery on all orders
| Main Info | |
|---|---|
| Brand | FGVITALY |
| Model | 51MSF505090X050 |
| Country of Origin | China |
| Material | |
| Finish | Nickel |
| Color | Silver |
| Specs | |
| Angle | 110° |
| Crank | Half Overlay |
| Plate | 2 Holes Cruciform |
| Features | |
| Closing attribute | Soft-Close |
